Catalogue

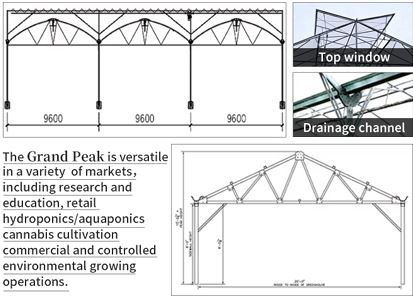

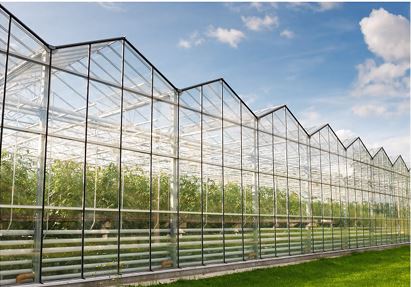

GLASS GREENHOUSE
PRODUCT INTRODUCTION
- The appearance of the multi span glass greenhouse is modern and novel, with a stable structure.
- Using hot-dip galvanized, connect with hot-dip galvanized anti-corrosion bolts and self tapping screws.
- No solder joints, sturdy and practical, overall simple and beautiful.
- Using glass as the covering material, it has high light transmittance and good thermal insulation.
- Widely used, commonly used as large ornamental greenhouses, seedling greenhouses, flower greenhouses, flower markets, large shopping malls, ecological restaurants, etc.
SUPPORTING EQUIPMENT
The supporting equipment is divided into:
hot-dip galvanized framework, internal and external shading system, top opening window and side window ventilation system, water curtain fan cooling system, computer integrated control system, drip irrigation and spraying system, seedbed, lighting system and other facilities.
Other configurations are selected by users according to planting requirements.

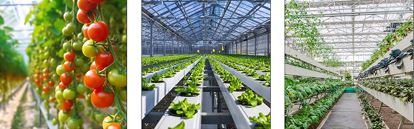

USES
POLYCARBONATE GREENHOUSE
PRODUCT INTRODUCTION
- The appearance of the multi span polycarbonate greenhouse is modern and novel, with a stable structure.
- Using hot-dip galvanized , connect with hot-dip galvanized anti-corrosion bolts and self tapping screws.
- No solder joints, sturdy and practical, overall simple and beautiful.
- Using polycarbonate as the covering material, good thermal insulation.
- Widely used, commonly used as large ornamental greenhouses, seedling greenhouses, flower greenhouses, flower markets, large shopping malls, ecological restaurants, etc.
SUPPORTING EQUIPMENT
The supporting equipment is divided into:
hot-dip galvanized framework, internal and external shading system, top opening window and side window ventilation system, water curtain fan cooling system, computer integrated control system, drip irrigation and spraying system, seedbed, lighting system and other facilities.
Other configurations are selected by users according to planting requirements.
USES

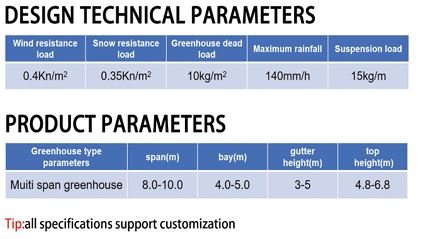

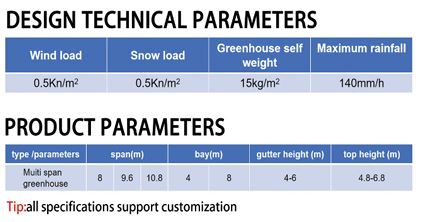

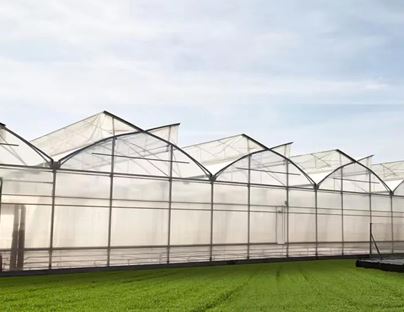

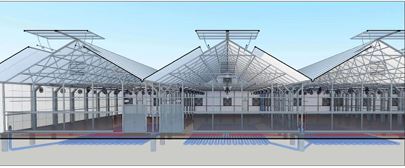

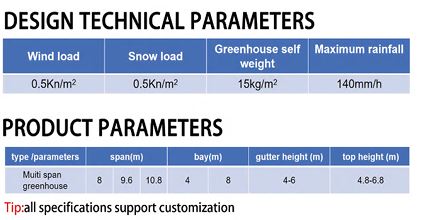

MULTI SPAN GREENHOUSE
PRODUCT INTRODUCTION
- Economical greenhouse with beautiful appearance and low cost.
- The amount of steel used in the structure is small, and the insulation performance is good.
- Facilities such as internal and external facilities, seedbeds, skylight side ventilation, water curtains, and fans can be equipped as needed.
- Hot dip galvanized pipes can be used for more than 20 years, and the cover material should be replaced every 5 years.
PRESENTATION OF RENDERINGS
USES

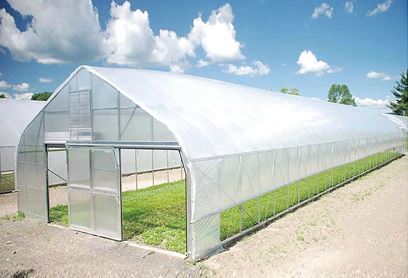

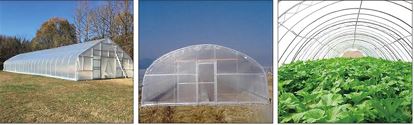

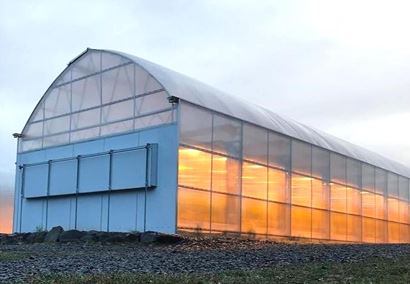

HIGH TUNNEL GREENHOUSE
PRODUCT INTRODUCTION
- Convenient construction and disassembly, with low one-time investment.
- Suitable for planting and breeding in temperate and tropical regions.
- The interior of the single span greenhouse facilitates mechanized cultivation.
- High utilization rate, uniform specifications

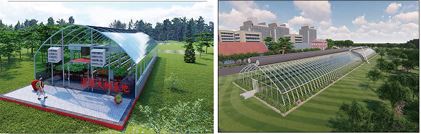

PRESENTATION OF RENDERINGS

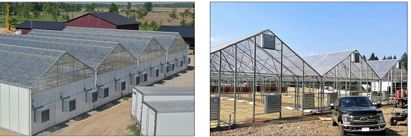

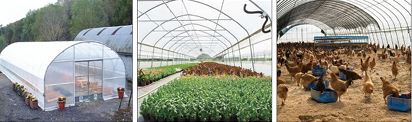

APPLICATION CASES
USES

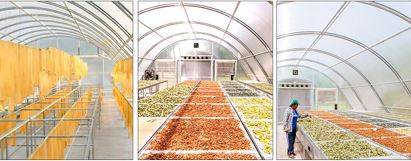

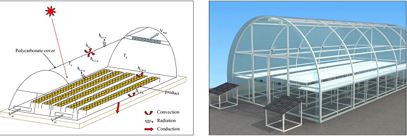

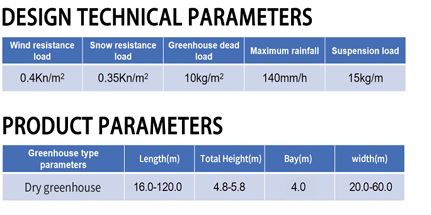

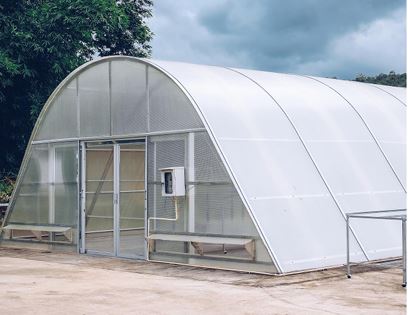

DRYING GREENHOUSE
PRODUCT INTRODUCTION
- The greenhouse thickness can be 6mm, 8mm, 10mm, etc., it provides a good confined space for your products, which can withstand high temperatures and is not easy to deform.
- Galvanized steel tube frame, stronger, more durable, more stable.
- A circulating fan can promote air circulation to regulate the temperature.
- Intelligent control system, which can be used at any time for temperature, humidity and product drying.
PRESENTATION OF RENDERINGS
USES

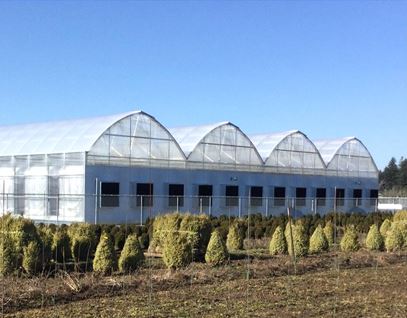

BUTTERFLY GREENHOUSE
PRODUCT INTRODUCTION
Agricultural film has the characteristics of good aging resistance, good flexibility, light weight, large unit coverage area, and easy to use. Agricultural films have a wide range of application scenarios in crop cultivation, applications in different seasons and climatic conditions, specific crops and uses, as well as environmental protection and sustainable development. It not only improves the yield and quality of crops, but also helps to save resources, reduce labor intensity, and bring tangible economic benefits to farmers.
PRESENTATION OF RENDERINGS
USES

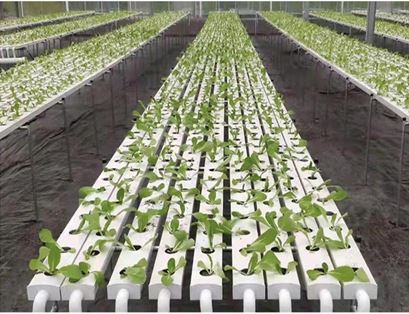

NFT HYDROPONICS
PRODUCT INTRODUCTION
COMMON SPECIFICATIONS
SUITABLE FOR PLANTING

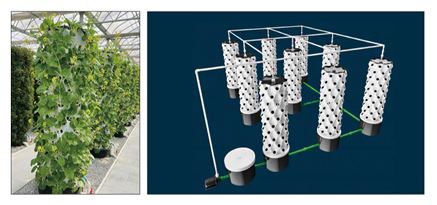

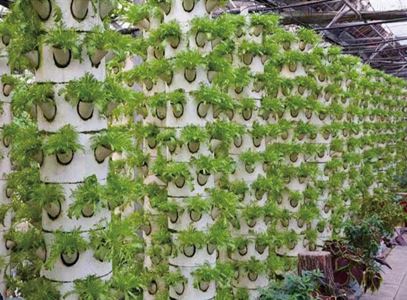

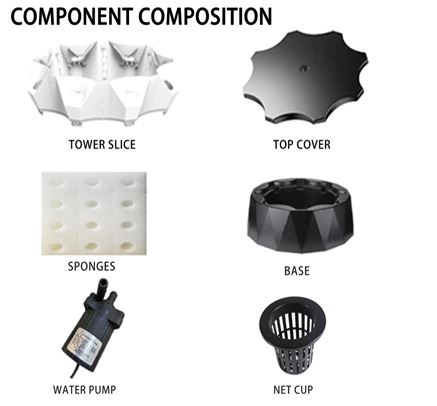

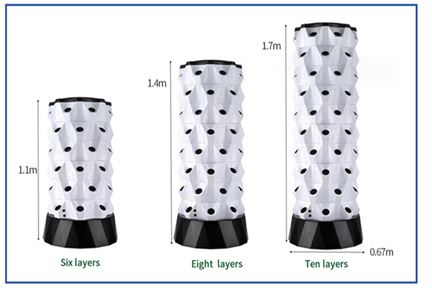

HYDROPONIC TOWER
PRODUCT INTRODUCTION

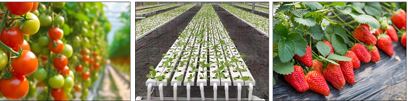

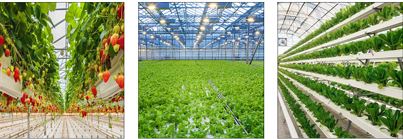

PLANTING CASES

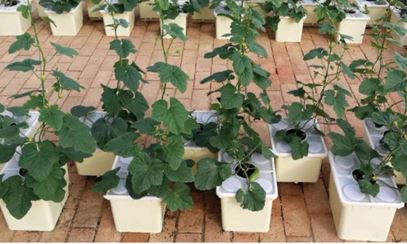

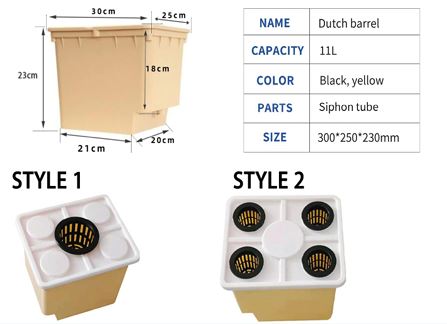

DWC HYDROPONIC SYSTEM
PRODUCT INTRODUCTION

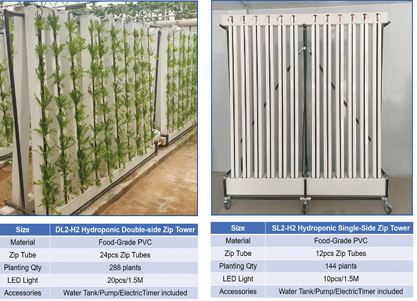

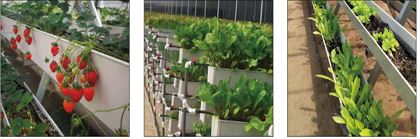

ZIPPER PLANTING SYSTEM
SUITABLE FOR PLANTING

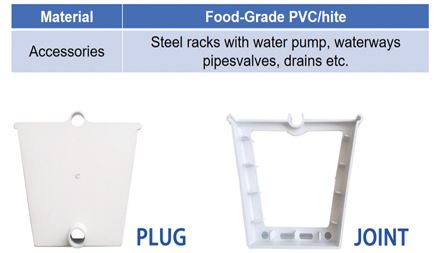

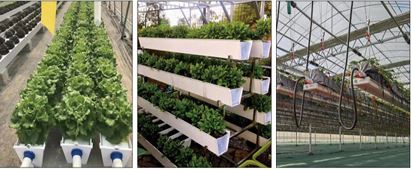

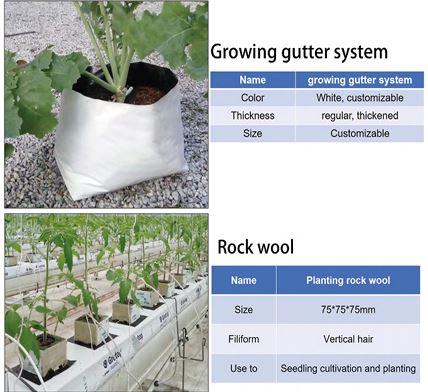

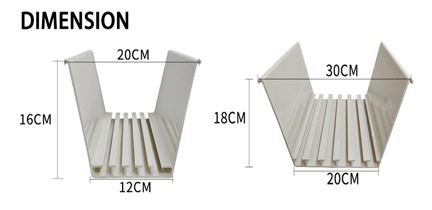

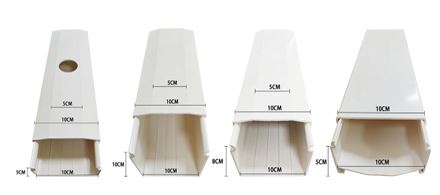

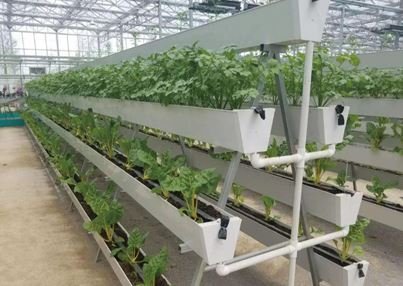

GUTTER
PRODUCT INTRODUCTION

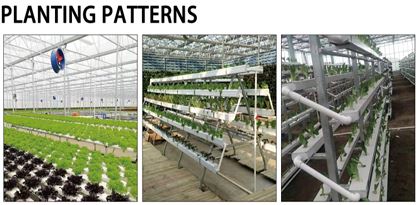

PLANTING PATTERNS
SUITABLE FOR PLANTING

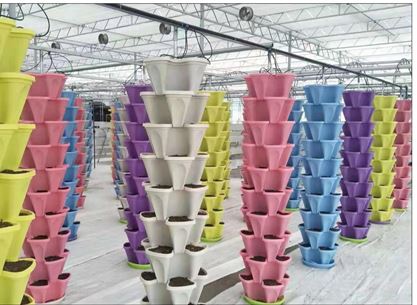

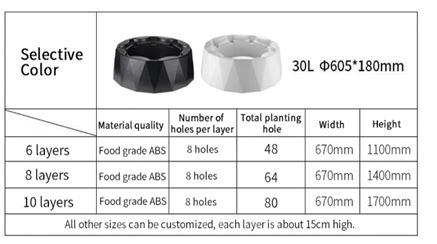

FLOWER POT THREE-DIMENSIONAL CULTIVATION
SUITABLE FOR PLANTING
ROTATING TOWER
DETAIL DISPLAY

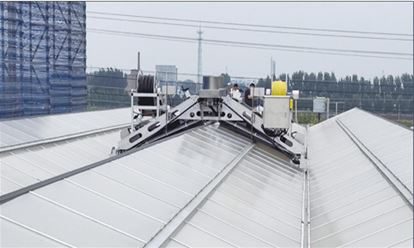

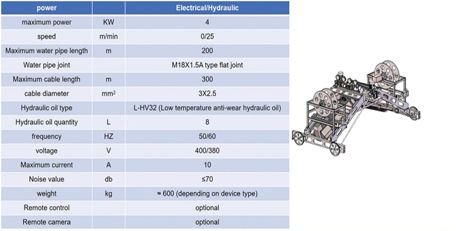

Roof cleaning machine
THE ROOF WASHER HAS A WORKING WIDTH OF 4.00 METER AND A WHEEL-BASE OF 150CM. THE MACHINE IS EQUIPPED WITH A LIGHTWEIGHT ALUMINUM FRAME AND A WELL BALANCED ELECTRICAL AND HYDRAULIC SYSTEM STEERING THE PROPULSION AND CONTROLLING THE COILERS, BRUSHES AND THE WHEEL CARRIAGE OF THE ROOF WASHER. THE TWO ROTATING STANDARD BRUSH ROLLS ARE ADJUSTABLE TO THE SLOPE OF THE ROOF OF THE GLASSHOUSE.

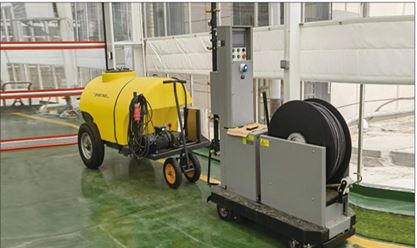

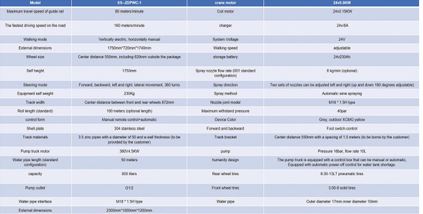

Automatic spray truck
AUTOMATICALLY RUN SPRAYING AND SPRAYING. BASED ON THE PLOT DATA, INPUT IT INTO THE SPRAYING MACHINE CONTROL SYSTEM, AND SPRAY ACCORDING TO THE SET DISTANCE. AFTER REACHING THE END POINT, IT WILL AUTOMATICALLY RETURN. WHEN RETURNING, IT CAN ALSO AUTOMATICALLY SELECT WHETHER TO SPRAY AND REACH THE STARTING POINT.
THE SYSTEM CAN STORE TEN PLOTS OF INFORMATION AT THE SAME TIME, AND CAN REALIZE ADJUSTABLE SPEED, ADJUSTABLE SPRAY, AUTOMATIC COIL AND AUTOMATIC RETURN. IT CAN SPRAY 5000 SQUARE METERS PER HOUR.
Water fertilizer integrated machine
Product features
● Water saving and fertilizer saving: Drip irrigation integrates water and fertilizer, directly and evenly delivering the fertilizer needed by crops to the roots of plants with water, greatly improving fertilizer utilization efficiency, reducing fertilizer usage by 50%, and the water volume is only 30% -40% of that of furrow irrigation.
● Labor saving and time saving: When using drip irrigation, simply open the valve and close the power switch, almost no work is needed.
● Using drip irrigation in winter can control the amount of water poured, reduce humidity, and increase soil temperature. The use of drip irrigation avoids problems such as crop root rotting and yellow leaves caused by excessive watering.
● Water and fertilizer balance: By using drip irrigation, crops can be supplied according to their water and fertilizer requirements at any time, while also promoting nutrient absorption.

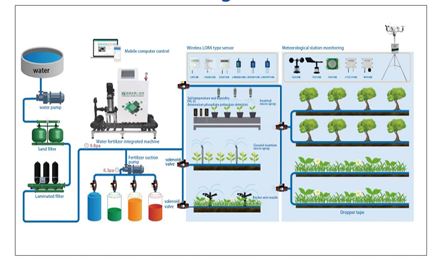

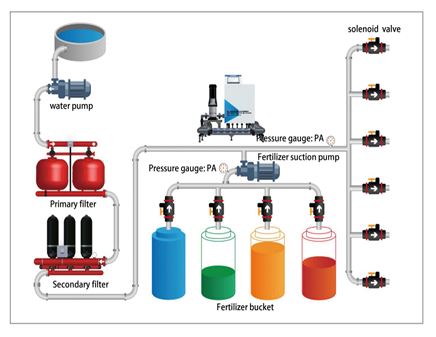

Schematic diagram of intelligent fertilization and irrigation system

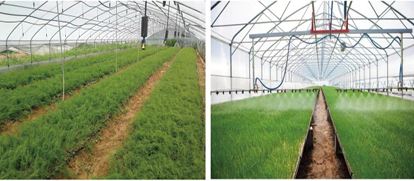

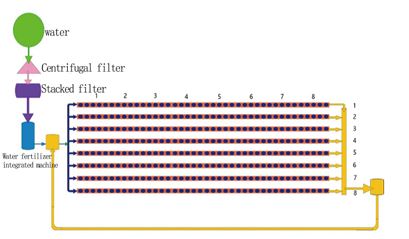

Greenhouse irrigation

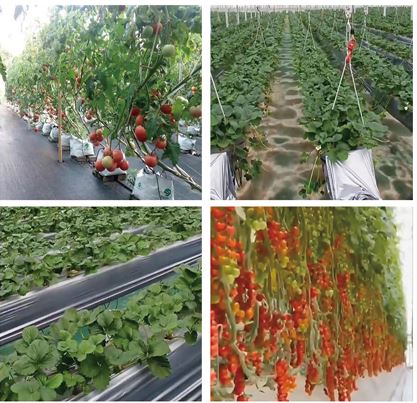

Planting system
SUITABLE FOR PLANTING
PLANTING CASES
Cooling Fan
The internal shading net can filter and reflect the light entering the interior of the greenhouse, reflecting a portion of it into the greenhouse and a portion into the greenhouse in the form of scattered light. Therefore, the internal shading has a certain cooling effect.
EXTERNAL SUNSHADE
External shading can directly block sunlight from the outside of the greenhouse, as infrared radiation is the main source of heat, so the cooling effect is more significant than internal shading.
Control Box
CONTROL COOLING SYSTEM, SHADING SYSTEM, TOP AND SIDE VENTILATION SYSTEM, HEATER AND SO ON, TO CONTROL THE TEMPERATURE, HUMIDITY, SUN LIGHT AND SUPPLY A SUITABLE ENVIRONMENT FOR CROPS GROWING.
220–240V/380V, 50HZ/60HZ, PH1/PH3 FOR CHOICE.
Film
Strong toughness, resistant to puncture, wind, impact, and tear;
High transparency;
The diffuse function ensures that the light in the fruit is evenly distributed, avoiding burns and making the fruit receive more even light.
Insect Net
It has the characteristics of tensile strength, heat resistance, water resistance, corrosion resistance, non-toxic and odorless.
Effectively protect vegetables, flowers, etc.
Reduce the harm of pests and greatly reduce the use of pesticides.
Common width:
1m/1.2m/1.5m/2.5m/3.5m.
Side Ventilation
SIDE VENTILATION CAN BE USED AS A MANUAL OR ELECTRIC SWITCH SYSTEM. THE VENTILATION OUTLET INCLUDES AN INTERNAL SEALING BAFFLE THAT CAN BE ADJUSTED TO CLOSE TO BETTER MAINTAIN TEMPERATURE WHEN THE OUTDOOR TEMPERATURE DROPS.
Inner curtain
Size: 1380×1380mm, 1000×1000mm, 1530×1530mm
Power: 1.1kw, 0.75kw, 1.5kw
Voltage: 220–240v, 380v, 415v, 480v.
Air Flow: 44000m³/h, 32500m³/h, 55800m³/h
Function: through the movement of air to cool the greenhouse environment
Water curtain
New material and space cross-linking technology, high absorption, high water resistance, mildew resistance, corrosion resistance, long-term.
Circulation Fan
Size: 400/500mm
Power: 180w/250w
Voltage: 220–240v/380v/415v/480v
Air Flow: 5300m³/h, 6300m³/h
Function: strengthen greenhouse air flow and effectively maintain uniform indoor temperature and humidity.
Heating Machine
Propane heating equipment is completely separately the hot air from the exhaust gas and discharge harmful gases to the outdoors.
Heating area: 300–500 m2/unit
Set temperature: about 15–24 degrees
Gas consumption: liquefied gas 2–3.8 kg/h
Natural gas 2.5–4.7 m³/h
Heating power: 50KW
Voltage: AC220V/380V
Fan power: 320W (1.67amps)
Air volume: 4500m³/H
Fuel: liquefied gas, natural gas.
